TECHNICAL SPECIFICATIONS

Introduction

Here is an overview of the facilities and technical specifications available at Millfield Theatre. It is intended to assist visiting companies, producers and hirers in planning their production and understanding the capabilities of the venue.

While every effort has been made to ensure the information provided is accurate, technical specifications may be subject to change. We strongly recommend that visiting companies discuss their technical requirements with the theatre’s technical team at the earliest opportunity to ensure a safe and successful event.

Our team is happy to provide additional information, arrange technical visits where possible and work with you to accommodate the needs of your production.

For more information, please contact technical@millfieldtheatre.co.uk

SEATING Specifications

  • Auditorium without Sound Position: 366 Seats

    Auditorium with Sound Position: 355 Seats

    Auditorium with covered pit: 323 Seats

    Sound Position Equates to: 15 Seats

    Reserved for Front of House Ushers: 4 Seats

STAGE Specifications

  • Pit Orchestra / Auditorium floor to Stage: 0.84m

    Proscenium Arch Width: 11.3m

    Front of Pit to Upstage Wall: 9.3m

  • Stage Width (Leg-Leg): 8.70m

    Stage Height: 5.10m

    SR-SL Wall: 14.10m

    Depth (CYC – Front of Stage): 5.93m

  • Moving Bar Trim Height: 5.70m

    Steel RSJ Height: 5.80m

    Fixed Bar Height: 5.60m

    Winch Bar Height: 5.10m

  • Harlequin dance floor (3 Rolls, 13m x 2m) is our standard floor although, underneath the dancefloor is 6MM Hardboard ON 25MM PLY. Please request if you specifically need the wooden floor.

  • Motorised bars (12) S.W.L: 250KG

    Hemp Bar (1) S.W.L: 50KG

    Width of Bar: 12M 53CM

    FOH Bar 1 (Fixed IWB, LX Bar)

    FOH Bar 2 (Fixed IWB, LX Bar)

    FOH Bar 3 (Fixed IWB, LX Bar)

    FOH Bar 4 (Down Fill Speakers)

    Bar 5 (Truss, Proscenium Header & House Tabs)

    Bar 6 (Fixed IWB, LX Bar)

    Fixed 1 (2 Legs, Working Light & 2 Small Foldbacks)

    Bar 7 (Moving Lights & 2X Legs)

    Fixed 2 (N/A)

    Bar 8 (Fixed IWB, LX Bar)

    Fixed 3 (Midstage black tabs)

    Bar 9 (Free Bar)

    Fixed 4 (Tab Track)

    ar 10 (Moving Lights)

    Fixed 5 (Working Lights)

    Bar 11 (Fixed IWB, LX Bar)

    Bar 12 (LX Bar & 2X Legs)

    Hemp Bar (White Gauze for Projection)

    Fixed 6 (Tab Track)

    Fixed 7 (Star Cloth)

  • Removable Treads SR & SL to the pit.

    SR Prompt Desk door.

    Get in Via Main Theatre Car Park Fire Exit doors (these will be open from the time of your get-In time).

  • 5 Pairs of Black Serge legs 5.2m x 2.1m

    The Proscenium Arch is hard black masking

  • 8’ X 4’ Steel Deck x 6

    6’ X 3’ Steel Deck x 4

    3’ X 2’ Steel Deck x 2

    1ft, 1.5ft, 2ft Legs (Various)

    3ft Legs (Limited)

  • White Gauze 12m x 5m (On Upstage Hemp Bar)

    Variety of Panto Cloths (Please request cloth catalogue)

  • 12 Rung Zarges Ladder x 1

    Tallescope x 1

    7 Rung Small Ladder x2

  • Washing Machine x 1

    Tumble Dryer x1

    Slop Sink x 1

  • Ground Floor

    Dressing Room 1 (1-6 Person Capacity)

    Dressing Room 2 (1-6 Person Capacity)

    Dressing Room 3 (1-6 Person Capacity)

    Male & Female Toilets with Showers



    First Floor

    Dressing Room 4 (1-8 Person Capacity)

    Dressing Room 5 (1-8 Person Capacity)

    Dressing Room 6 (1-8 Person Capacity)

    Dressing Room 7 (1-8 Person Capacity)

    Dressing Room 8 (1-8 Person Capacity)

  • Auditorium, Stage, Ground Floor Dressing Rooms are wheelchair accessible.

    Control Room & First Floor are not wheelchair accessible.

LIGHTING Specifications

  • Installed Dimmers 750amp over 3-Phase (3 Dimmer Racks)

    3kw Outlets x 140 (33 Ways FOH, 117 Ways Stage)

    On Stage 63amp – 3-Phase Distro (2x32amp & 6x16amp).

    Single 16Amp SL

    13 Amp 2 WAY Socket SL & SR.

  • We are running hardline DMX on 2 universes (1&2) and SCAN for universes 2 (aswell) & universes 3-8.

    Universe 1 – DMX (All Generic Dimmers, House lights & Parked NON-DIM Power)

    Universe 2 – FOH1, FOH2, FOH3, Perches SL & Perches SR

    Universe 3 – LX6, LX7, LX8

    Universe 4 – LX9, LX10, LX11

    Universe 5 – Free

    Universe 6 – Free

    Universe 7 – Free

    Universe 8 – LX12

  • ETC GIO – Control Room

  • Installed Wing Workers are LED Blues (3 Either Side) on NON-Dims (Parked on with LX DESK Power Up, universe-1 Address 62 & 79, Channel 1000)

    Stage Working light is via a fishkey socket Upstage Right.

  • 2 X 36’ Source 4 Profile (FOH BAR 3) Accessible Via Zarges

    4 X 15-30’ Source 4 Profile (FOH BAR 3) Accessible Via Zarges

    1 X 36’ Source 4 Profile (LX6 Onstage)

  • Generic Fixtures

    • 57 x Par Can

    • 5 x Source 4 Parcan

    • 7 x Cantata Fresnel

    • 18 x Selecon Fresnel

    • 3 x Acclaim 24-44’ Profile

    • 10 x 36’ Source 4 Profile

    • 12 x 15-30’ Source 4 Profile

    • 4 x 25-50’ Source 4 Profile

    • 10 x Single Cell Floods

    • 2 x Robert Juliat Followspot

    • 1 x Mirror Ball & Motor

    • 24 x Birdies

    Intelligent Fixtures

    • 6 x Rogue R2X Spot

    • 2 x Rogue R2 Wash

    • 4 x Rogue R1 Spot

    • 4 x Equinox 260zr Wash

    • 12 x Equinox 260zr Wash MK2

    • 13 x Chauvet Colorado Quad AR2.D

    • 4 x Chauvet Ovation Battons

    • 8 x Beamz LED Battons

    • 2 x MAC 250 Entour Wash

    • 1 x Unique Hazer

    • 1 x StarCloth

    • 1 x Low Fog

    • 2 x Fabric Flame Machines

    Cables

    • 13 x DMX 5PIN Short

    • 10 x DMX 5PIN Long

    • 11 x DMX 3PIN Short

    • 28 x DMX 3PIN Long

    • 14 x 5-3PIN Converter

    • 17 x 3-5PIN Conerter

    • 25 x 15AMP TRS Long

    • 43 x 15AMP TRS Medium

    • 36 x 15AMP TRS Short

    • 31 x 2 Way Grilco

    • 16 x 16AMP

    • 10 x 16 AMP Splitters

    • 4 x 16Male – 15Amp Female

    • 8 x 15Male – 16Amp Female

    • 7 x 13Male – 15Amp Female

    • 10 x 15Male – 13Amp Female

    • 16 x 16Male – 13Amp Female

    • 8 x 13Male – 16Amp Female

    • 20 x Powercon – 13Amp

    • 10 x Powercon – 16Amp

    • 1 x Powercon – 15Amp

    • 6 x 32 AMP

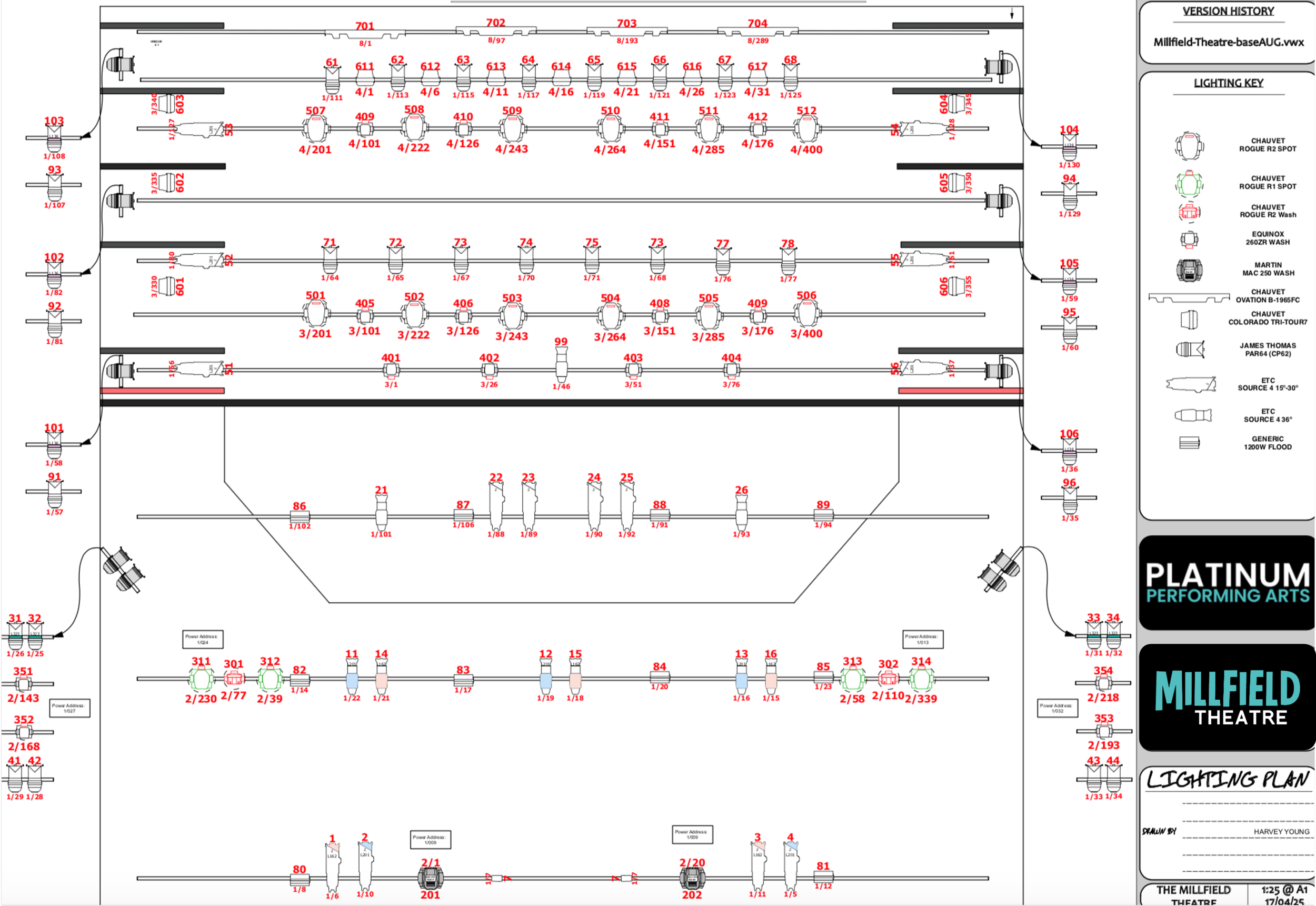

Lighting Rig Plan

SOUND Specifications

  • Sound Control Room (An Open window, however if mixing a band or sound heavy show we recommend locking the 11 Seats outside the box).

    Open Mix Position in the back row of Stalls (Loose 11 Seats)

  • 32Amp Single Phase Upstage Right.

    32Amp Distro – 4x 16amp Splits.

    16amp – 13Amp Converters are available

    13 Amp 2 Way Sockets USR, DSL & DSR.

    A 13amp 4 way in the Control Box or at the outside sound position for the desk.

  • 2 x Martin (WT2) Tops

    2 x Martin (WT2) Bottoms

    2 x Martin (WT2) Delays

    2 x Martin (WS2A) Subs

    2 x EV (RX112/75) DownFills

    4 x Martin (WT15) Front Fill

  • Yamaha QL5 (XLR Tie Lines & Dante)

  • QLAB 5 Sound & Video Licence

    MacBook 2020

    Dante Virtual SoundCard

  • We have 6 separate tielines on stage for individual mixes, although we have a selection of Monitors, 8 Passive Monitors and 2 Active Monitors.

    4 x Martin (F12+)

    2 x EV (RX112/75)

    2 x TurboSound Drum Wedges

    1 x SubZero Active Speaker

  • 16 x Sennisher G3 Radio Mic Receiver’s

    16 x Headset Microphones / G3 Sennisher Belt Packs

    8 x Wireless Sennisher G3 Handhelds

    4 x Sennisher Paddles

  • Canford Master Station (Located In The Tech Box)

    Fixed Comms Pack with Headset at the prompt desk

    Fixed Comms Pack with Headset SR Wing

    Fixed Comms Pack with Headset LX Desk

    Fixed Comms Pack with Headset Sound Desk

    Fixed Comms Pack with headset Followspot

  • Millfield Theatre does not stock nor provide any instruments or amps. Incoming companies are responsible for providing their own instruments.

     We Do however have a Grand Piano which is available for hiring. A piano tuner would need to be booked along with hiring the piano. (Millfield would book the tuner).

  • Sound Equipment

    • 2 x Macbook

    • 3 x Headphone Mixers

    • 1 x PC DI BOX

    • 2 x Stereo DI BOX

    • 5 x Mono DI Box

    • 13 x Belt Packs

    • 1 x SPL Level Reader

    Microphones

    • 3 x SM58 Shure

    • 2 x SM58 (Other)

    • 9 x SM57 Shure

    • 3 x SM57 Shure BETA

    • 22 x Sennisher G3 Radio Packs

    • 8 x Sennisher G3 Radio Handhelds

    • 1 x FULL AKG Drum Set

    • 4 x Shotgun Mics

    • 9 x Black Laviller Mics

    • 2 x Lectern Mics

    • 2 x Floor Crown Mics

    • 4 x Condenser Mics

    • 2 x Hanging Mics

    • 4 x AKG Drum Mics

    • 2 x Tom Mics

    • 4 x Kick / Condenser Mics

    Cables

    • 35 x XLR LONG

    • 68 x XLR SHORT

    • 30 x ¼ Jack Cables

    • 29 x Speakon

    • 15 x Single 13AMP

    • 15 x 2 Way 13AMP

    • 17 x 4 Way 13AMP

    • 6 x 16 Amp

    • 10 x 16 Amp Y Splits

    • 3 x XLR – MINI JACK

    • 1 x Powercon Barrel

    • 9 x Speakon Barrel

    • 2 x 8 Way Stage box

    • 30 x ¼ Jack Cables

    • 3 x BNC Cables

    • 40 x IEC – 13Amp

    • 14 x IEC Extenders

VIDEO Specifications

  • Our Projector is situated on FOH2 which is the best position to cover the whole back wall. We projector onto a white gauze on the upstage hemp bar backed by Black Starcloth.

    HDMI – CAT 5 – HDMI

    Sony VPL Lazerjet Projector

  • Our Projector is situated on FOH2 which is the best position to cover the whole back wall. HDMI – CAT 5. We have a CAT 5 HDMI Converter box which can be moved to either of our Projector CAT 5 Tie line positions.

     CONTROL BOX (For use in the Tech Box)

    CONTROL BOX LINK TO STAGE & PROMPT DESK (For use Stage Level)

  • QLAB Version 5

  • Various Lengths of VGS, BNC, HDMI and Ethernet Cables, thunderbolt adapters are available. Please contact us with your requirements.

SFX Specifications

  • Le Maître 6 Way Pyro Controller

    4 x Pyro Pods

    2 x Sparkular’s (Cold Sparks)

    PLEASE NOTE: Pyro should be booked at least 2 months in advance due to Stock availability. Pyro is bought specifically for each booking and not held on-site. If Pyro is required for a show, we require a risk assessment carried out by the company. Pyro should only be operated by trained personnel.

  • 4 x Handheld CO2 Operated Confetti Cannons X4

    2 x Funfetti Cannons (DMX Controlled)

    Our standard confetti is Gold or Silver. Although please specify if you require a specific colour of confetti.

  • 2 x Geysers

    1 x Low Fogger

    PLEASE NOTE: Fluid is bought depending on shows requirements, Please ensure and SFX has been pre-booked a minimum of 2 months in advance.

DISCLAIMER

Millfield Theatre staff reserve the right to restrict access to any of the above at our discretion. We also reserve the right to eject any person from the premises whom we deem to be acting irresponsibly or unsafely. Hirers should consult their hire packs for additional surcharges on some of the above. We cannot guarantee that all equipment will be in good working order and available for use at the time of your visit. Millfield Theatre is a no smoking building; we do not permit alcohol to be consumed backstage.

For any queries regarding any of the above or if you wish to book any of the technical items stated please email technical@millfieldtheatre.co.uk and hire@millfieldtheatre.co.uk
